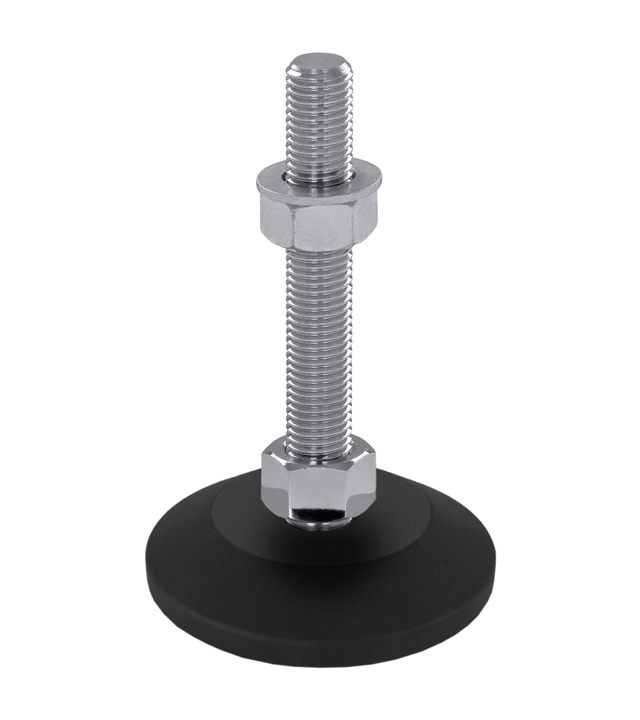

Levelling mount - adjustable foot JCMP 80 S - vibration damped
Accessories
 |
Nut and washer steel zinc-plated |
- Foot plate: grey cast iron black powder-coated
- Threaded spindle: steel zinc-plated
- Damping plate: Elastomer, 70° Shore A, black (on request alternatively 50°/85° Shore A)
The galvanizing of the threaded spindle also offers a high degree of corrosion protection.
The synthetic special rubber of the damping plate is suitable for high demands on the swelling resistance against fuel, oil, grease and alphatic solvents at higher temperatures.
This levelling mount is also available in gray cast iron chrome-plated.
Our solid levelling mounts made of gray cast iron find their application with high dynamic stresses and the insulation of vibrations and body sound.
The maintenance-free levelling mount or adjustable foot JCMP80S with a diameter of 85mm is steplessly adjustable over the thread (depending on the spindle length) and tiltable to a certain degree, which simplifies precise assembly and alignment.
The adjustable angle of inclination of approx. 7.5 ° in each direction guarantees a stable and precise alignment of the machine.
The delivery of the levelling mounts is completely assembled.
The maintenance-free levelling mount or adjustable foot JCMP80S with a diameter of 85mm is steplessly adjustable over the thread (depending on the spindle length) and tiltable to a certain degree, which simplifies precise assembly and alignment.
The adjustable angle of inclination of approx. 7.5 ° in each direction guarantees a stable and precise alignment of the machine.
- Vibration damping with maximum stability
- Noise reduction and protection against slipping due to damping plate
- Stepless height adjustment (depending on the length of the thread spindle) with maximum stability and low force expenditure
- Compensation for ground irregularities without the need for expensive concrete foundations
- Large hex key surfaces for easy height adjustment
- Screwed connection between plate and spindle
The delivery of the levelling mounts is completely assembled.
Available sizes levelling mount JCMP80S:
- JCMP80M8x50S
- JCMP80M8x80S
- JCMP80M8x100S
- JCMP80M8x120S
- JCMP80M8x150S
- JCMP80M8x180S
- JCMP80M8x200S
- JCMP80M8x250S
- JCMP80M8x300S
- JCMP80M10x50S
- JCMP80M10x80S
- JCMP80M10x100S
- JCMP80M10x120S
- JCMP80M10x150S
- JCMP80M10x180S
- JCMP80M10x200S
- JCMP80M10x250S
- JCMP80M10x300S
- JCMP80M12x50S
- JCMP80M12x80S
- JCMP80M12x100S
- JCMP80M12x120S
- JCMP80M12x150S
- JCMP80M12x180S
- JCMP80M12x200S
- JCMP80M12x250S
- JCMP80M12x300S
- JCMP80M14x50S
- JCMP80M14x80S
- JCMP80M14x100S
- JCMP80M14x120S
- JCMP80M14x150S
- JCMP80M14x180S
- JCMP80M14x200S
- JCMP80M14x250S
- JCMP80M14x300S
- JCMP80M16x50S
- JCMP80M16x80S
- JCMP80M16x100S
- JCMP80M16x120S
- JCMP80M16x150S
- JCMP80M16x180S
- JCMP80M16x200S
- JCMP80M16x250S
- JCMP80M16x300S
- JCMP80M20x50S
- JCMP80M20x80S
- JCMP80M20x100S
- JCMP80M20x120S
- JCMP80M20x150S
- JCMP80M20x180S
- JCMP80M20x200S
- JCMP80M20x250S
- JCMP80M20x300S
- JCMP80M24x50S
- JCMP80M24x80S
- JCMP80M24x100S
- JCMP80M24x120S
- JCMP80M24x150S
- JCMP80M24x180S
- JCMP80M24x200S
- JCMP80M24x250S
- JCMP80M24x300S
- JCMP80M30x50S
- JCMP80M30x80S
- JCMP80M30x100S
- JCMP80M30x120S
- JCMP80M30x150S
- JCMP80M30x180S
- JCMP80M30x200S
- JCMP80M30x250S
- JCMP80M30x300S
- JCMP80M24x1.5x50S
- JCMP80M24x1.5x80S
- JCMP80M24x1.5x100S
- JCMP80M24x1.5x120S
- JCMP80M24x1.5x150S
- JCMP80M24x1.5x180S
- JCMP80M24x1.5x200S
- JCMP80M24x1.5x250S
- JCMP80M24x1.5x300S
- JCMP80M30x1.5x50S
- JCMP80M30x1.5x80S
- JCMP80M30x1.5x100S
- JCMP80M30x1.5x120S
- JCMP80M30x1.5x150S
- JCMP80M30x1.5x180S
- JCMP80M30x1.5x200S
- JCMP80M30x1.5x250S
- JCMP80M30x1.5x300S
Technical Details
| Ø D | 85 mm |
| H1 | 25 mm |
| H2 | 40 mm |
| H | 90 mm |
|
17 mm |
|
850 kg |
Notice: The max. static load value refers to the foot plate. If you have any questions about the load on the foot plates or spindles, please feel free to contact our technical support.
CAD DATA DOWNLOAD
Please enter your e-mail address for the download of the CAD-file.
Applications
- injection moldings
- hydraulic systems
- bottling systems
- packaging machines
- textile- and woodworking machines
